30F

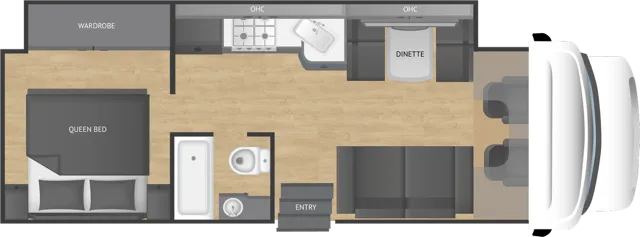

2026 Wraith 30F Super C Floorplan
NeXus RV’s Wraith Diesel Super C luxury motorhome features for the serious RV’er. Built on the Freightliner chassis, the Wraith features 6.7L Cummins ISB powerplant coupled with 6 speed Allison transmission. Nexus puts emphasis on the quality of the build, the frame, strength, and longevity of the motorhome. . NeXus RV best in class “ALL STEEL – COMPOSITE” construction up to 72% stronger construction for safer rides, while steel in the superstructure, minimizing potential water damage, while maximizing thermal and sound insulation. Wraith Diesel Super C buyers have owned other motorcoaches and upgrade to the Wraith Diesel when quality, safety, carrying capacity, luxury, and peace of mind is key to buying decision.
2026 Wraith 30F Super C Floorplan

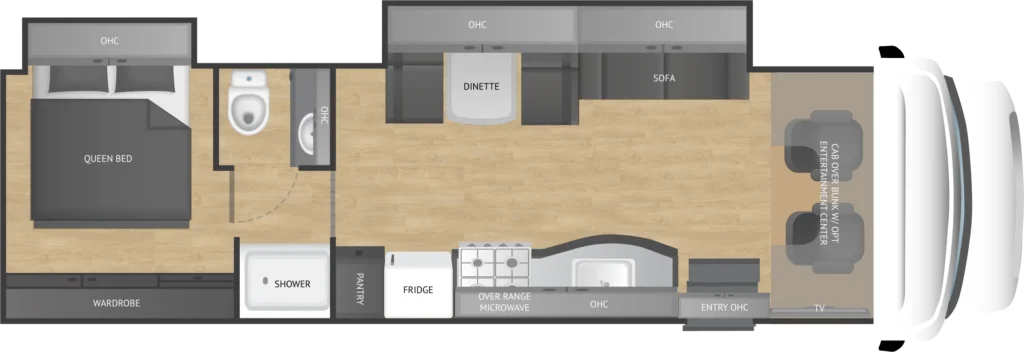

2026 Wraith 32F Super C Floorplan

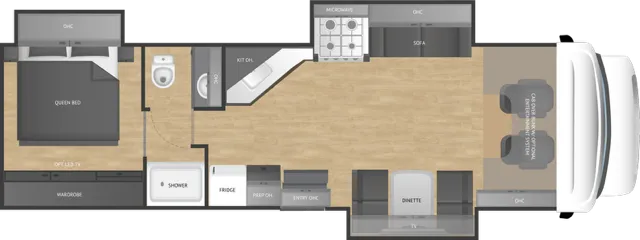

2026 Wraith 33F Super C Floorplan

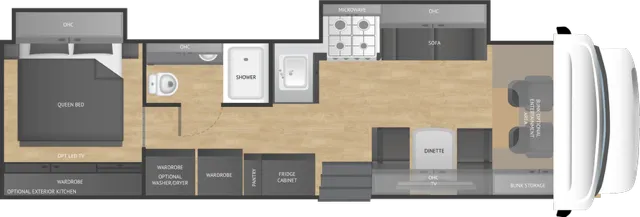

2026 Wraith 34F Super C Floorplan

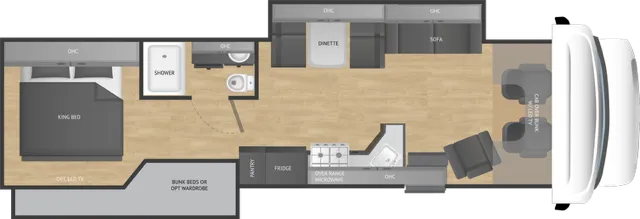

2026 Wraith 35F Super C Floorplan

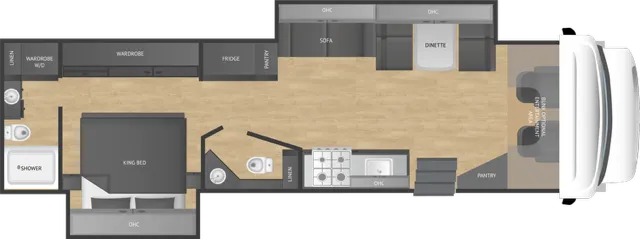

2026 Wraith 37F Super c floorplan
| MODEL | W.B. | GVWR | GCWR | FR GAWR | RR GAWR | FUEL CAP. | FRESH WATER | BLACK & GRAY TANK | GEN SIZE | HITCH | INT. HT. | OAH | OAW | OAL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30F | 238 | 24,000 lbs | 33,000 lbs | 10000 lbs | 17500 lbs | 60 GAL | 85 GAL | 50/50 GAL | 8.0 KW | 10,000 lbs | 86" | 12'10" | 8' 5" | 31'7" |
| 32F | 238 | 24,000 lbs | 33,000 lbs | 10000 lbs | 17500 lbs | 60 GAL | 85 GAL | 38/38 GAL | 8.0 KW | 10,000 lbs | 86" | 12'10" | 8' 5" | 34'1" |
| 33F | 238 | 24,000 lbs | 33,000 lbs | 10000 lbs | 17500 lbs | 60 GAL | 85 GAL | 38/38 GAL | 8.0 KW | 10,000 lbs | 86" | 12'10" | 8' 5" | 34'1" |
| 34F | 238 | 24,000 lbs | 33,000 lbs | 10000 lbs | 17500 lbs | 60 GAL | 85 GAL | 38/38 GAL | 8.0 KW | 10,000 lbs | 86" | 12'10" | 8' 5" | 34'1" |
| 35F | 263 | 24,000 lbs | 33,000 lbs | 10000 lbs | 17500 lbs | 60 GAL | 85 GAL | 50/50 GAL | 8.0 KW | 10,000 lbs | 86" | 12'10" | 8' 5" | 36' 1" |
| 37F | 263 | 24,000 lbs | 33,000 lbs | 10000 lbs | 17500 lbs | 60 GAL | 85 GAL | 2-50/2-50 GAL | 8.0 KW | 10,000 lbs | 86" | 12'10" | 8' 5" | 37'2" |
