28R

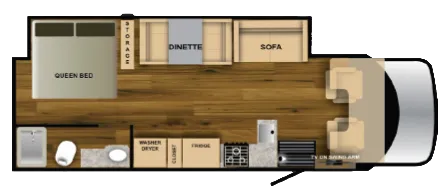

2026 4x4 Super C 28R Floorplan
2026 4x4 Super C 28R Floorplan

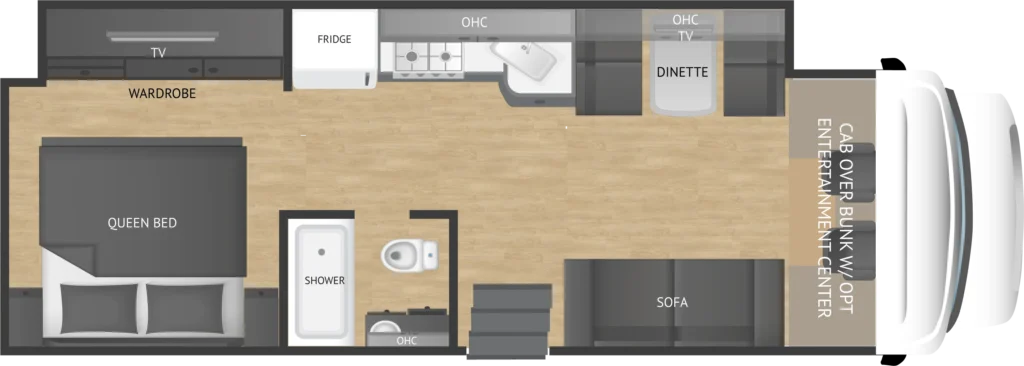

2026 4x4 Super C 30R Floorplan

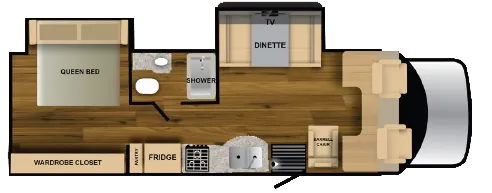

2026 4x4 Super C 31R Floorplan

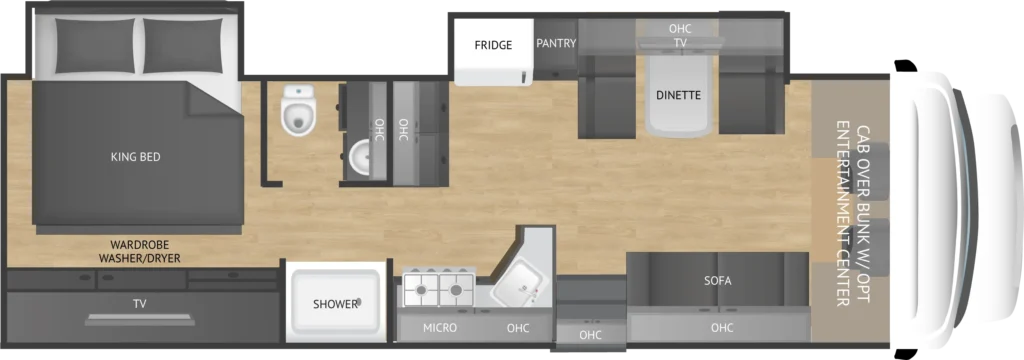

2026 4x4 Super C 34R FLOORPLAN

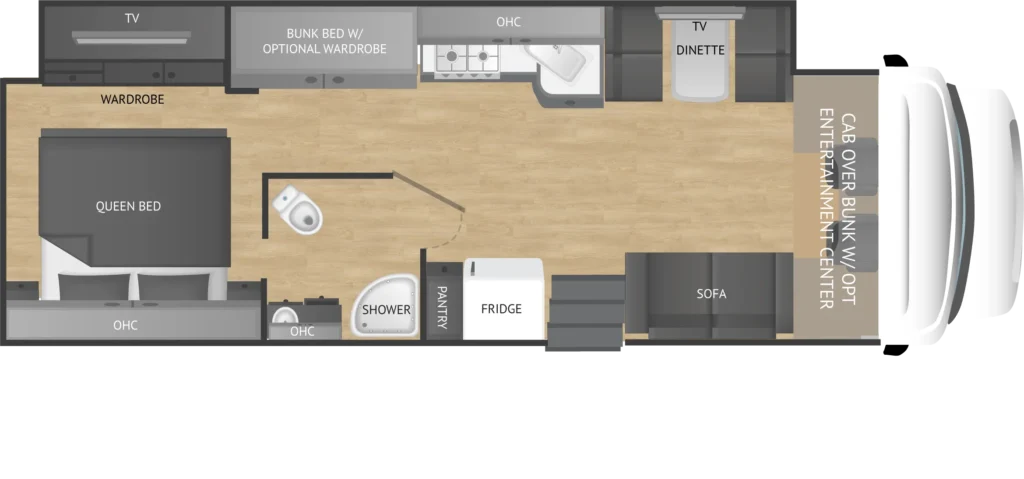

2026 4x4 Super C 35R Floorplan
| MODEL | W.B. | GVWR | GCWR | FR GAWR | RR GAWR | FUEL CAP. | FRESH WATER | BLACK & GRAY TANK | GEN SIZE | HITCH | INT. HT. | OAH | OAW | OAL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 28R | 201 | 19500lbs | 34,500lbs | 7500 lbs | 15500 lbs | 65 GAL | 85 GAL | 50 GAL | 6.0 KW | 12,000 lbs | 85 3/4" | 12' 2" | 8'5" | 29' 11/16" |
| 30R | 243 | 22,000 lbs | 34,500lbs | 7500 lbs | 15500 lbs | 65 GAL | 85 GAL | 50 GAL | 6.0 KW | 12,000 lbs | 85 3/4" | 12' 2" | 8' 5" | 31' 7" |
| 31R | 201 | 19500lbs | 34,500lbs | 7500 lbs | 15500 lbs | 65 GAL | 85 GAL | 50 GAL | 6.0 KW | 12,000 lbs | 85 3/4" | 12' 2" | 8'5" | 30'7" |
| 32R | 231 | 19500lbs | 34,500lbs | 7500 lbs | 15500 lbs | 65 GAL | 85 GAL | 50 GAL | 6.0 KW | 12,000 lbs | 85 3/4" | 12' 2" | 8'5" | 32'-2" |
| 34R | 243 | 22,000 lbs | 34,500lbs | 7500 lbs | 15500 lbs | 65 GAL | 85 GAL | 50 GAL | 6.0 KW | 12,000 lbs | 86 3/4" | 12' 2" | 8'5" | 34' 7" |
| 35R | 243 | 22,000 lbs | 34,500lbs | 7500 lbs | 15500 lbs | 65 GAL | 85 GAL | 50 GAL | 6.0 KW | 12,000 lbs | 85 3/4" | 12' 2" | 8' 5" | 34' 11" |
